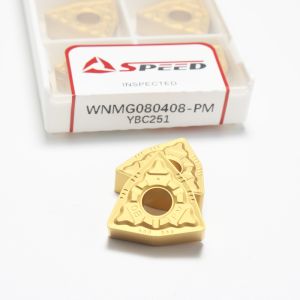

WNMG 08 Turning Inserts Lathe Machine Cutting Tools WNMG080404-DM

Products Description

​Advantages:

1. 100% Virgin Raw Material
2. German Dorst machine make perfect quality
3. Efficient & Stable Processing
4. Long-lasting wear resistance
5. Optional specification
6. Excellent performance
7. High Durability
8. High wear resistance

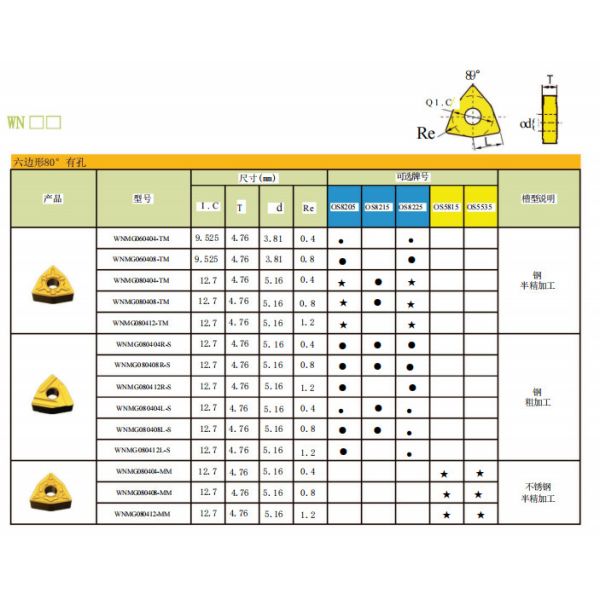

Specification:

Application:

Our WNMG tungsten carbide Turning Inserts adopts imported machine to ensure good stability of cutting edge, high precision, high hardness, good finishing, durable coating, stable performance and improves the working efficiency. The unique coating process, fine and smooth, no drip marks, reduce surface friction, so that the cutting resistance is smaller. And the carbide inserts are sharp and thick, so that the cutting speed is fast but not easy to break. It has wide range of application, applicable to step surface processing, model profiling processing, grooving cutting, slope processing, and could to be processed alloy steel, soft steel, carbon steel, medium steel, stainless steel, cast iron, titanium alloy,
please send me your requirements to us, we will recommend the best suitable grade.

Products Detail:

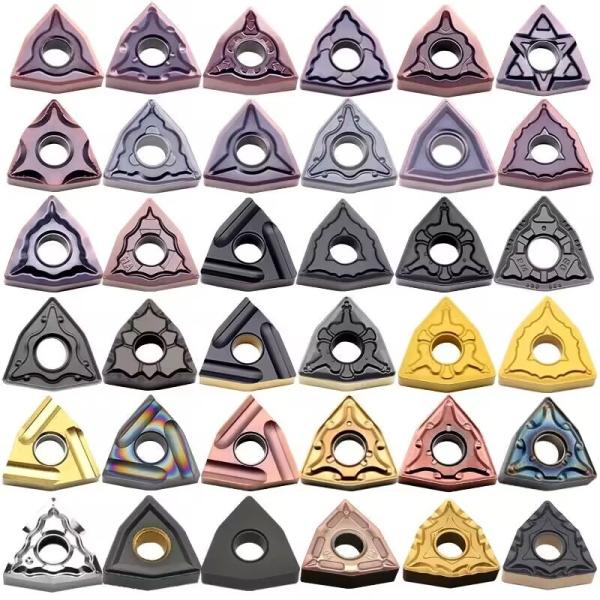

• Double-sided Sharp, Hexagonal Available
• Different R angles meet your needs for rough and finishing turning, reduce cutting resistance and achieve sharp cutting
• Chip Breaking and Chip Removal are Smooth of Each Patterns

• Usually black color for hard steel, yellow color for soft steel, copper color for stainless steel, choose the suitable coating make your process more easier.
• Different angles are suitable for different processing
  R0.4 Finishing
  R0.8 Semi-finishing
  R1.2 Roughing​

Details:

1. Our perfect edge treatments, every pieces can stand the test.

2. Longer tools service life improving your working efficiency.

Company Profile

Hunan SPEED Carbide Tools Co.,Ltd is a professional supplier of Carbide, Inserts,Including Turning Inserts,Milling Inserts,Grooving Inserts,Threading Inserts,U drill lnserts, Aluminum Inserts and Cermet inserts etc. Located in ZhuzhouHunan, which is the biggest tungsten carbide tools city near ZCCCT, We provide various and efficient delivery ways. Our factory covers and area of 2,000sqm and has more than 100 staff members who are professional and willing to grow up with you.

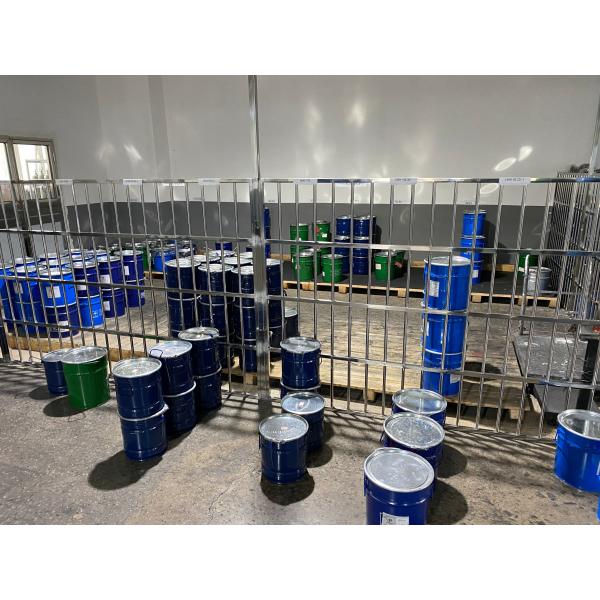

Below is our factory and warehouse, we use

1. 100% virgin raw material + Germany DORST machine make perfect quality

2. each piece of insert have 3 times checked before shipment.

3. each piece will be finely grinding piece by piece

Feel free to contact if you want a factory show.

Note:

1. Carbide grooving inserts shall not be bumped or dropped on the ground and please be handled with care.

2. Before installing the carbide grooving blade, please confirm the performance and use of operation table, and the cutting direction indicated by the arrow of the blade is consistent with the rotation direction of the operation table. Please pay attention to don't install in the opposite direction. The wrong installation direction may cause the blade serrations to fall off, in case of accidents.

3. After installation, it is necessary to confirm whether the center hole of the carbide grooving blade is firmly fixed on the flange of the saw table. If necessary, put on a spacer, then, push it lightly by hand to confirm whether the blade rotates eccentrically.

4. When using, do not exceed the specified high speed.

5. When not using, please hang the blades upright on a dry rack.

FAQ:

1. Flank wear: (This is a common form of failure)
Effect: Gradual change in workpiece size or loss of surface finish
Reason: Linear speed is too high, and reach to service life of the tool
Measures: Adjust the processing parameters, such as reducing the linear speed and changing to inserts with higher wear resistance

2.Breakdown problem: (bad form of failure)
Effects: Sudden changes in workpiece size or surface finish, causes sparks and surface burrs
Reason: Inappropriate setting of processing parameters, inappropriate selection of blade material, poor workpiece rigidity, or unstable blade clamping
Measures: Check whether the parameter settings are reasonable, and select the corresponding tool according to the workpiece
